220V110V 30A Dry Steam Room Sauna Room Temperature Controller for Control Temperature,Light,Fan Etc，3 Panel Types Optional

220V110V 30A Dry Steam Room Sauna Room Temperature Controller for Control Temperature,Light,Fan Etc，3 Panel Types Optional

$158.47
$0.00 $158.47
Sale Sold out
Color
Voltage


USB port for MP3
Power down memory function

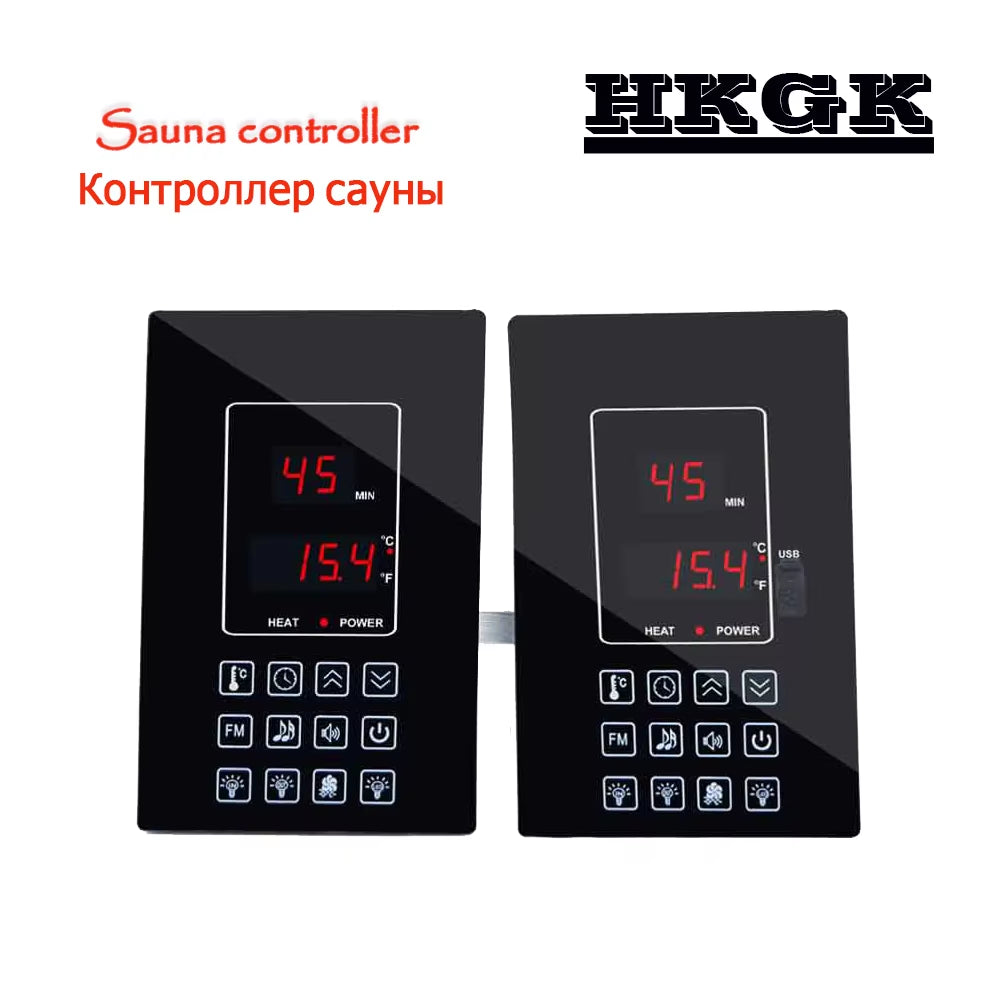

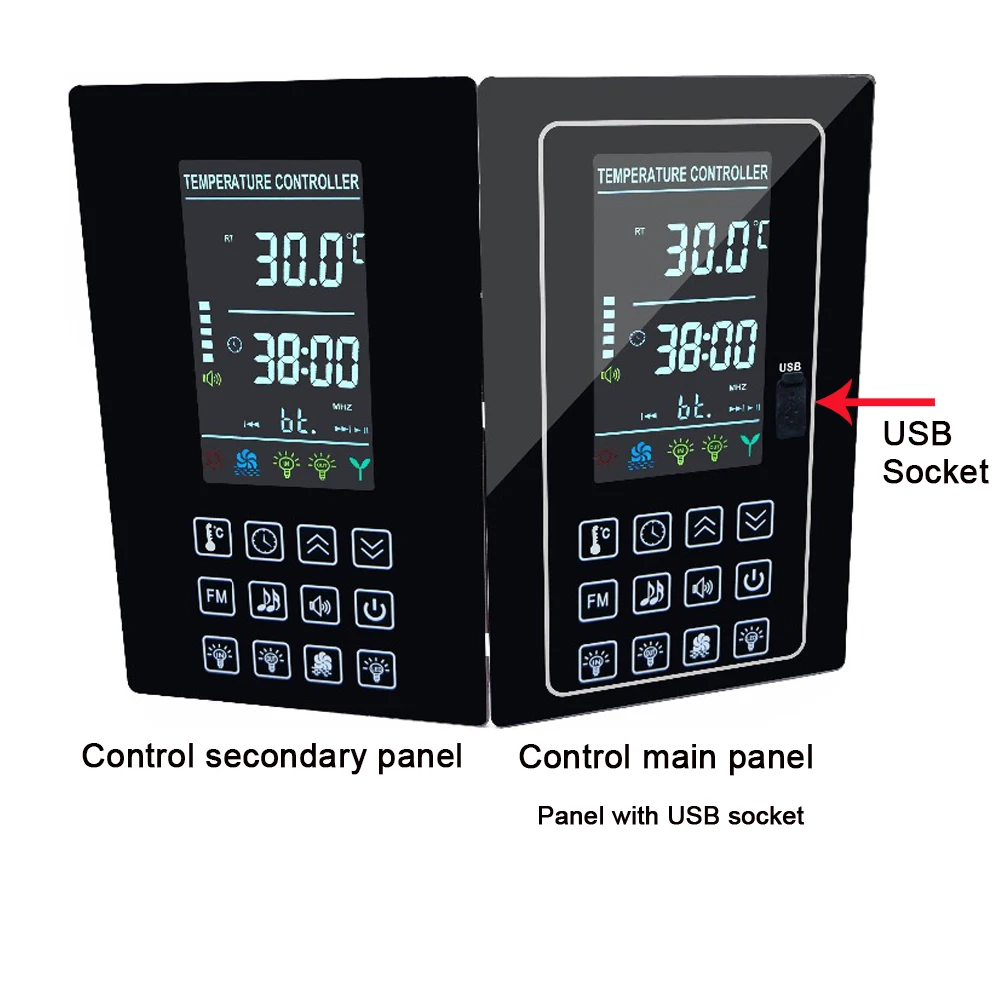

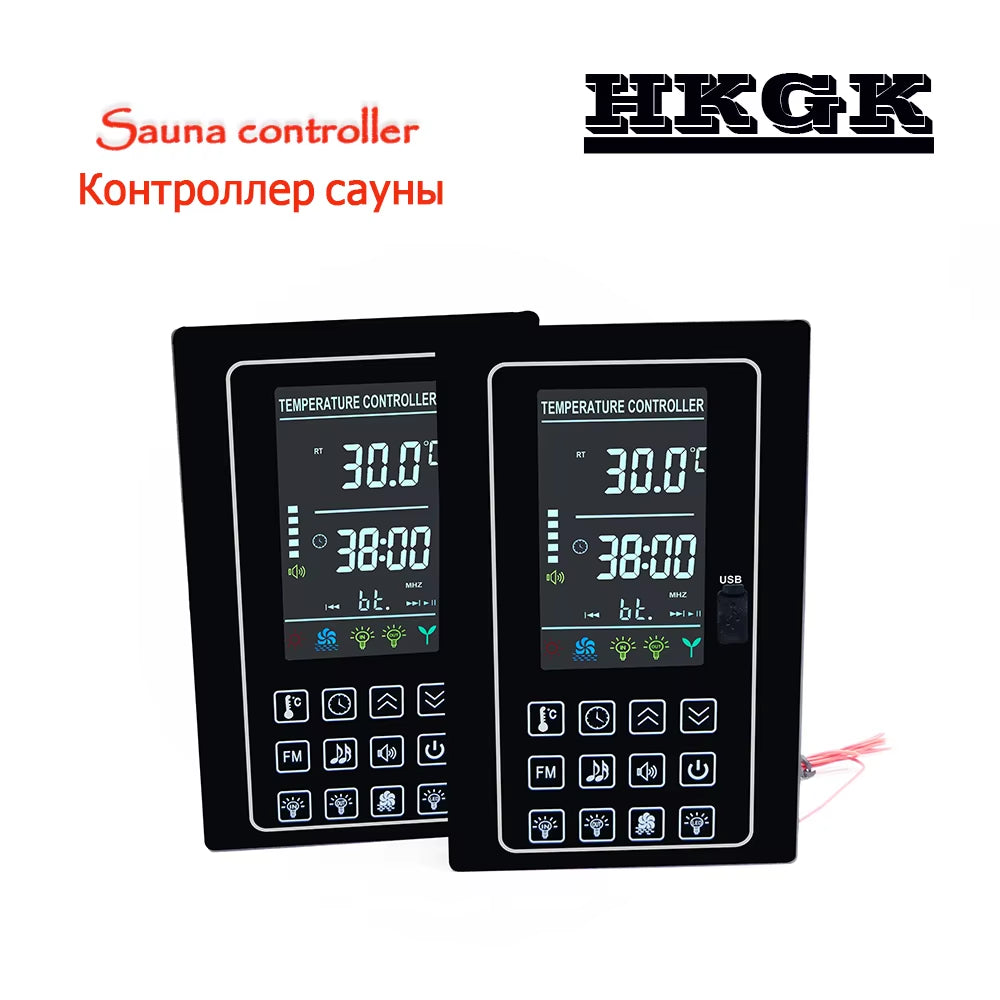

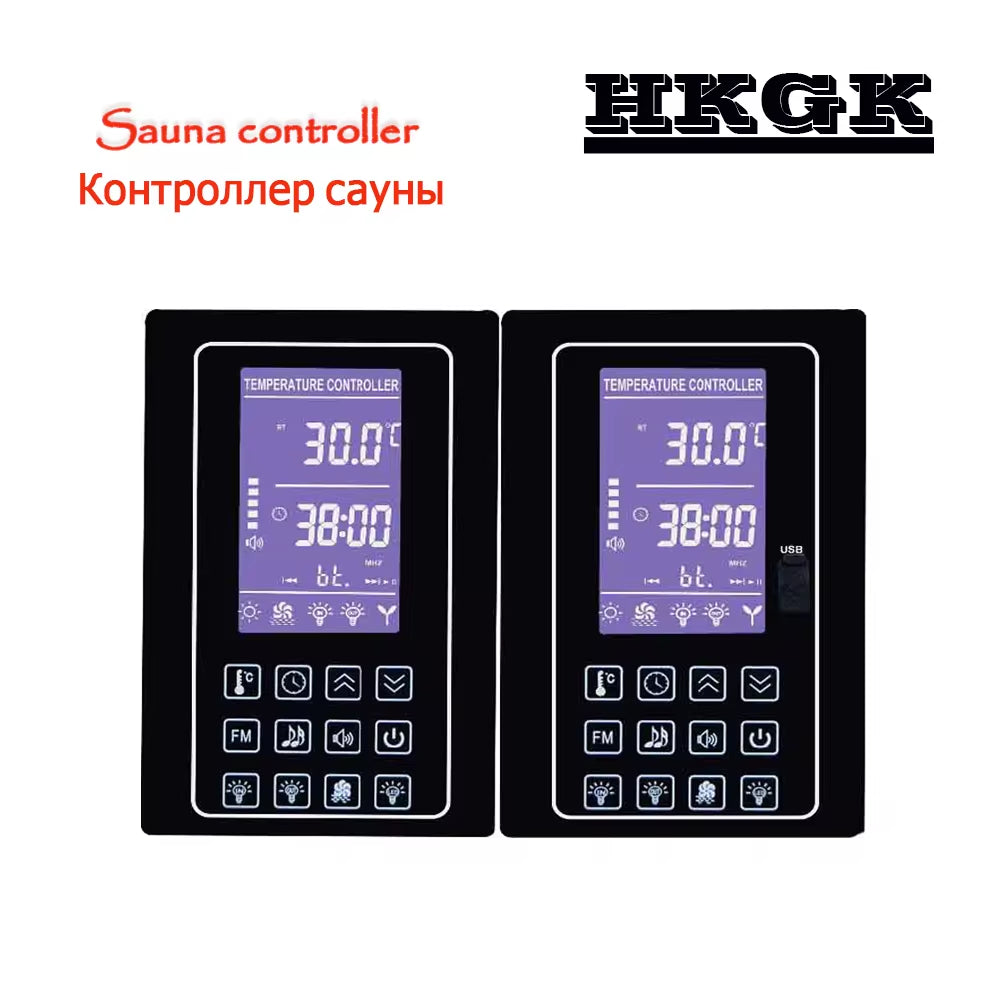

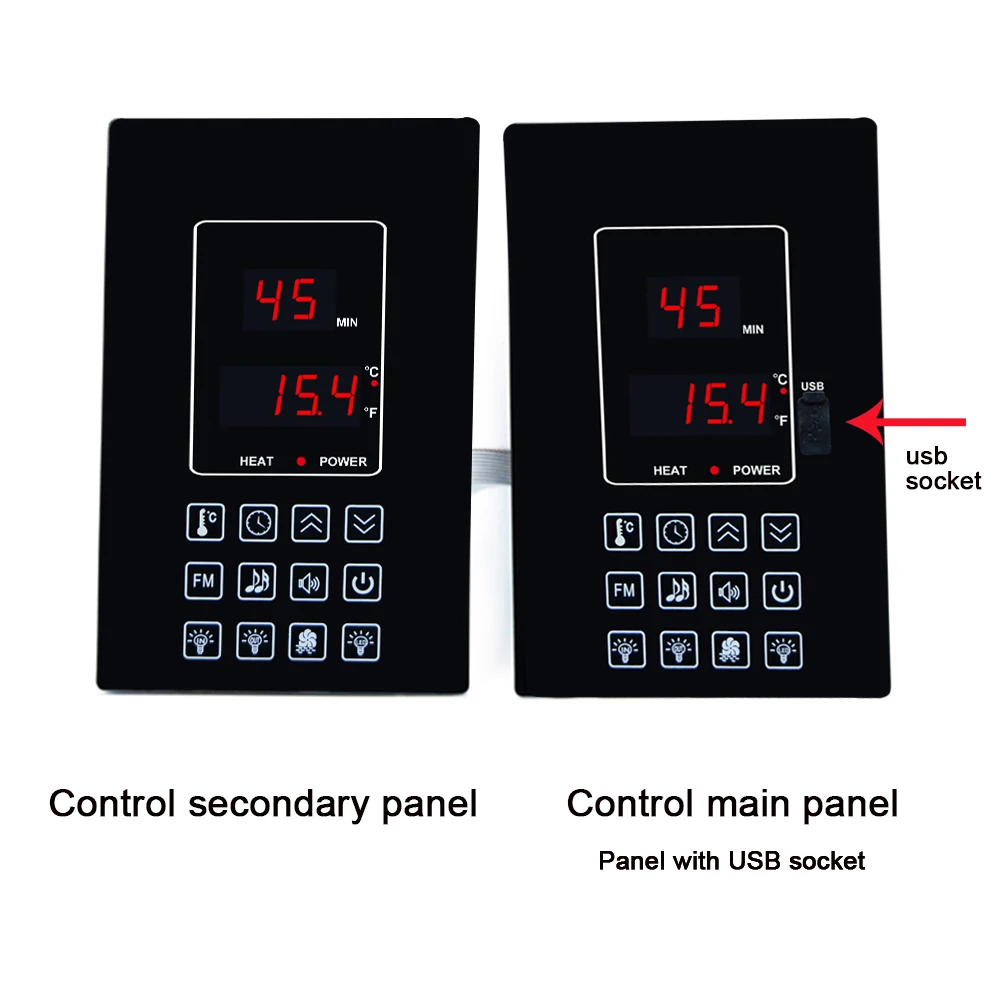

Dual panels: indoor display and operation panel and outdoor display and operation panel
Multi functions: heat, mp3, FM, inside and outside light, Color Therapy LED board, fan, AUX(UV/Oxygen bar etc.)
RC710 Celsius temperature and Fahrenheit temperature free switching(°C/℉)
Parameters
( RC812/RC813)Temperature measuring range: 0~110°C
Temperature controlling range: 18~110°C
( RC710) Temperature measuring range: 0~110°C (32 ℉ ~230 ℉)
Temperature controlling range: 18~110°C(64 ℉ ~230 ℉)
Resolution: 0.1°C
Accuracy: ±1°C
Power Supply: 220VAC±10%, or 110VAC±10% 50HZ/60HZ
Input: 1 NTC sensor(wire: 1m for standard, can be customized)
Inside lamp/outside lamp: 12VDC/2A
Loudspeaker: 12VDC, Speaker Impedance≥4Ω
Output: two 30A relay parallel outputs control heating;
Fan: 10A relay; AUX output (colorful LED, or UV lamp or oxygen bar etc.):10A
Heat output: resistive load max. 4500W/220V, 2500W/110V
(If you want to connect bigger load, please buy AC contactor on your local market, and connect AC contactor before using.)
Consumption: ≤3 w
Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)

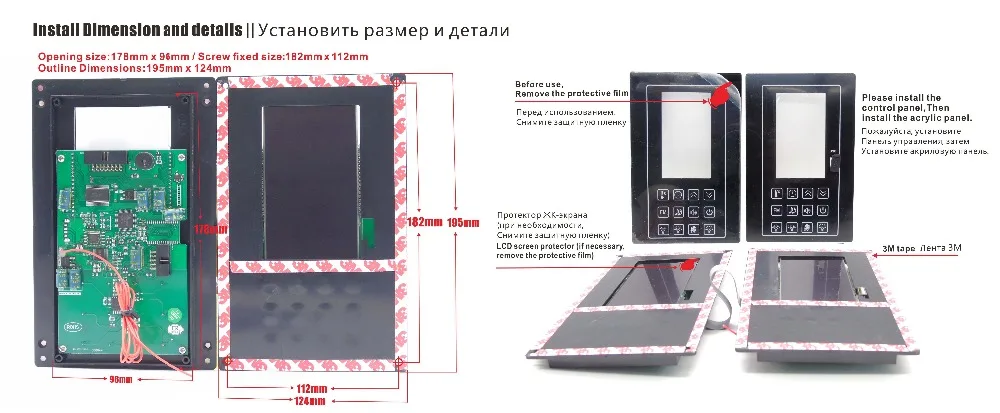

Opening size:178mm x 96mm
Screw fixed size:182mm x 112mm
Outline Dimensions:195mm x 124mm

Function Menu

caution
The RC710 version is upgraded, and the control timer (countdown) has been upgraded. After the upgrade, the countdown time range is 1-99 hours, and other functions remain unchanged.
Subsequent products delivered are the upgraded version of RC710.
Buttons function

Output Explanation

If you connect a load with a power greater than 3 kW, use an AC contactor connection:

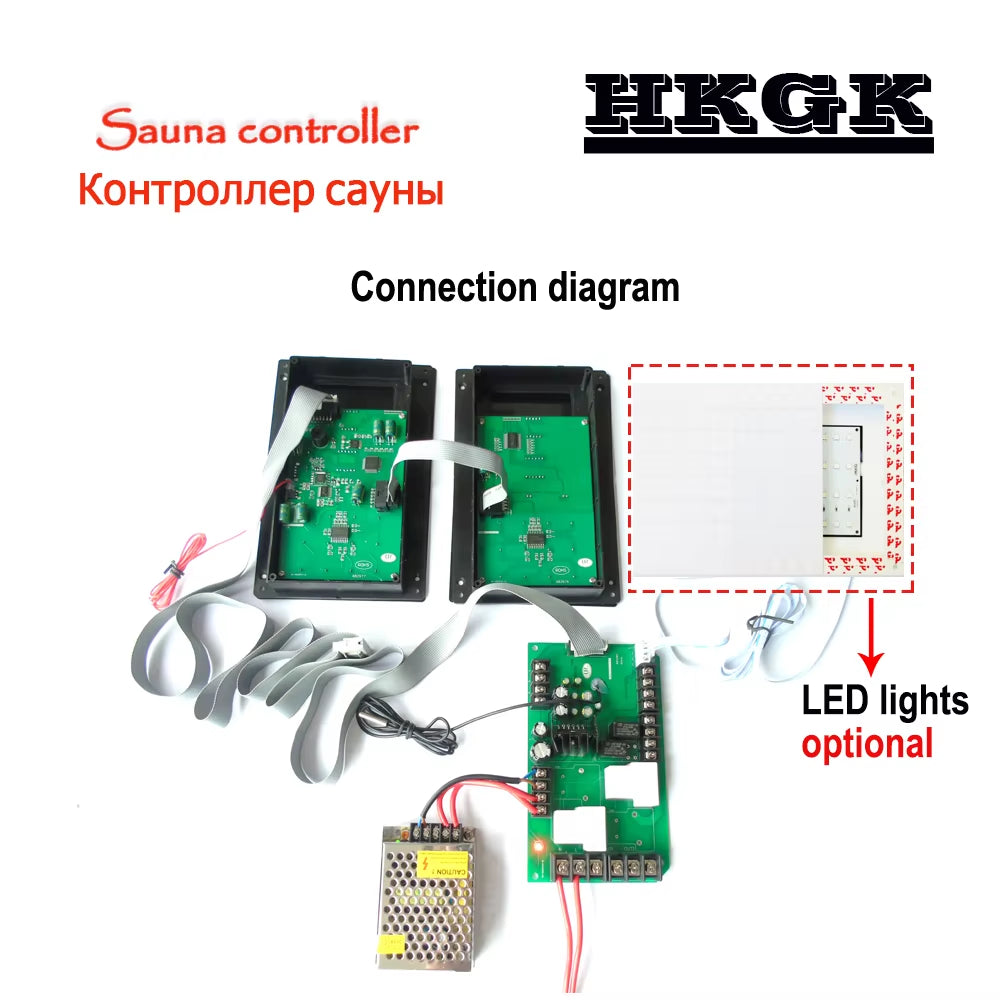

RC813 is newly upgraded, the pcb circuit board and connection line have been adjusted, please refer to the following figure

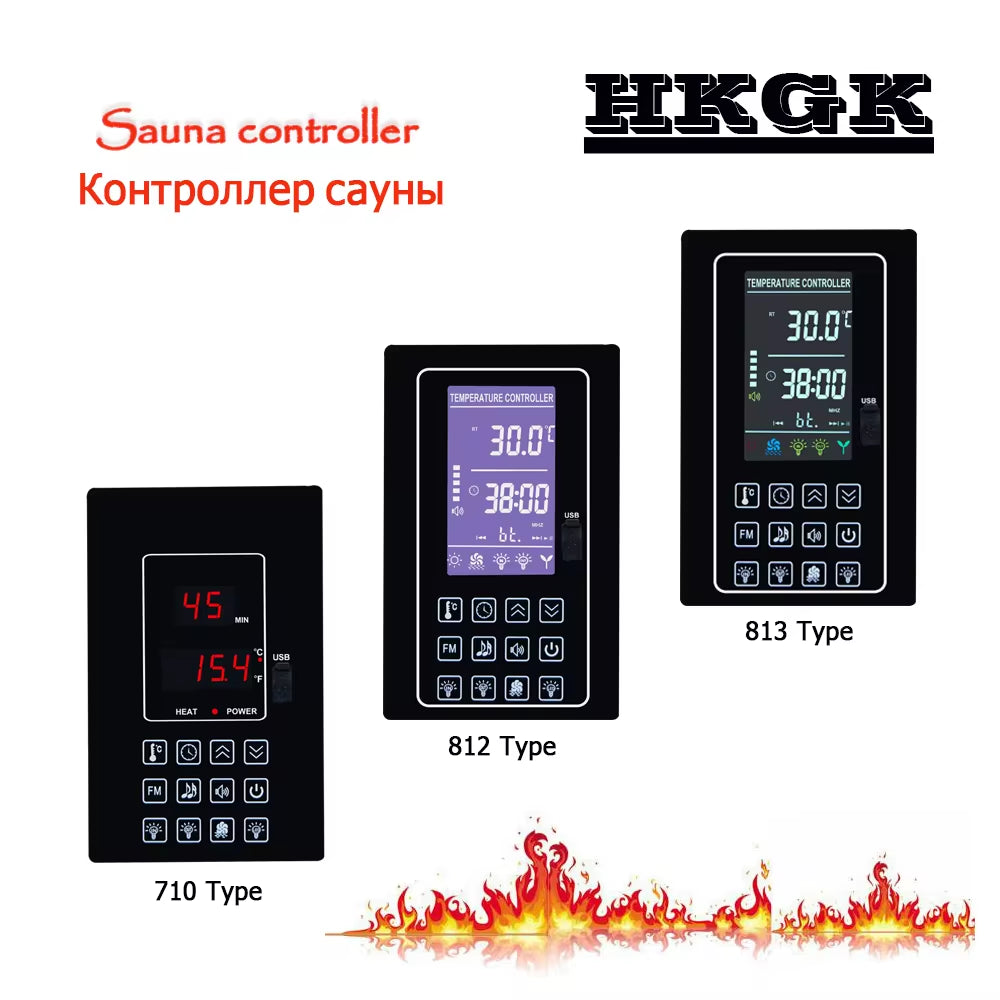

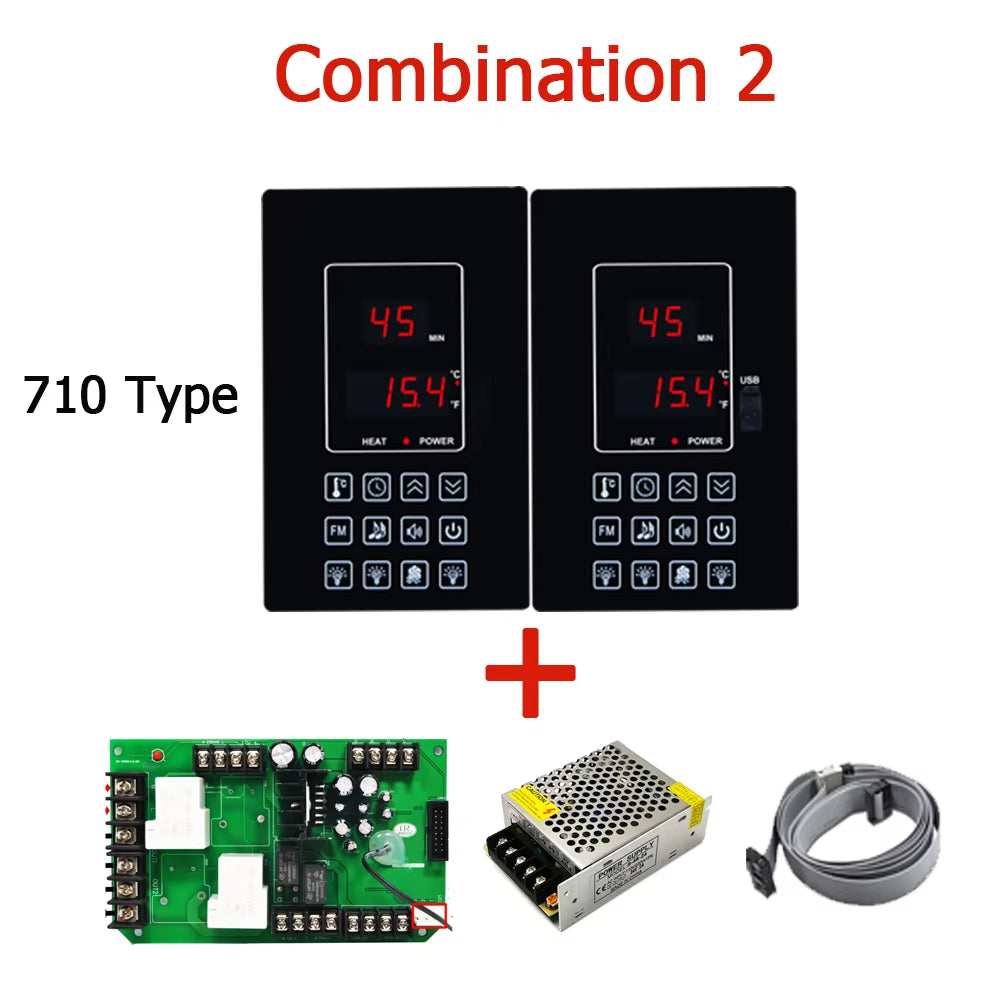

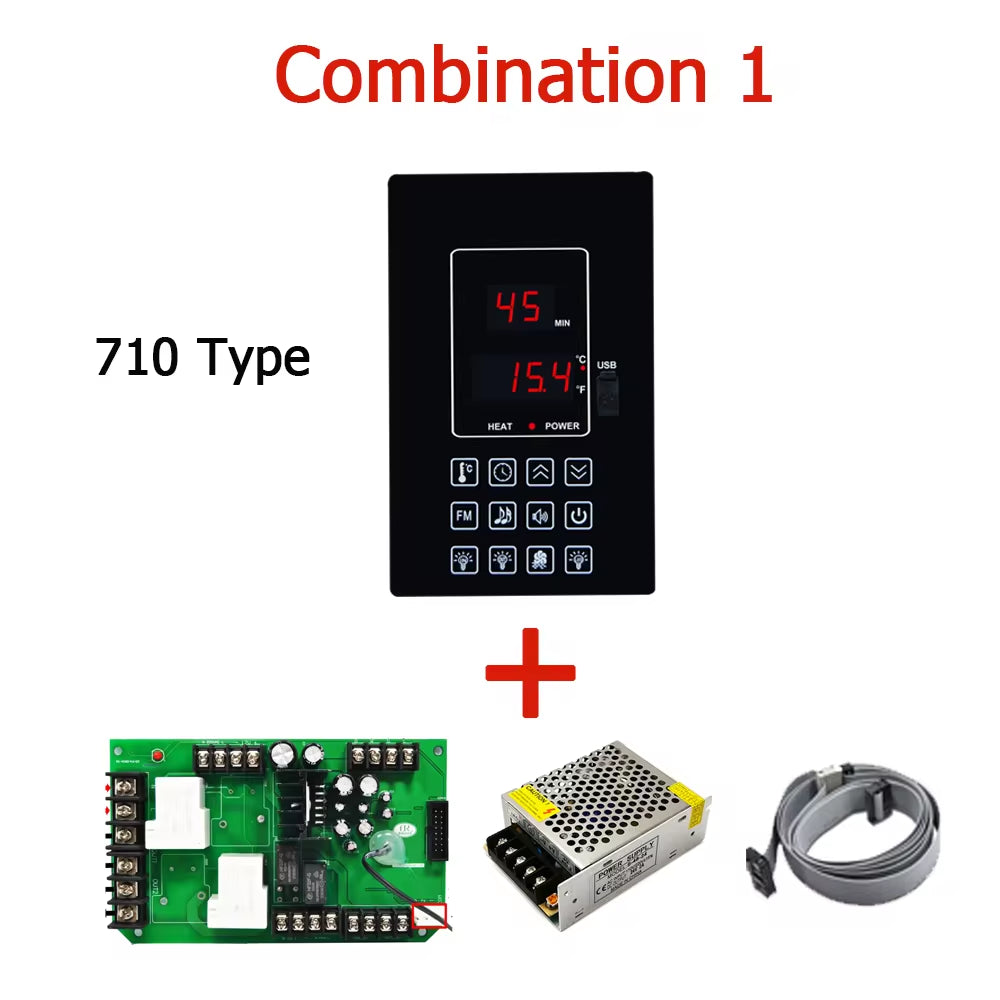

RC710

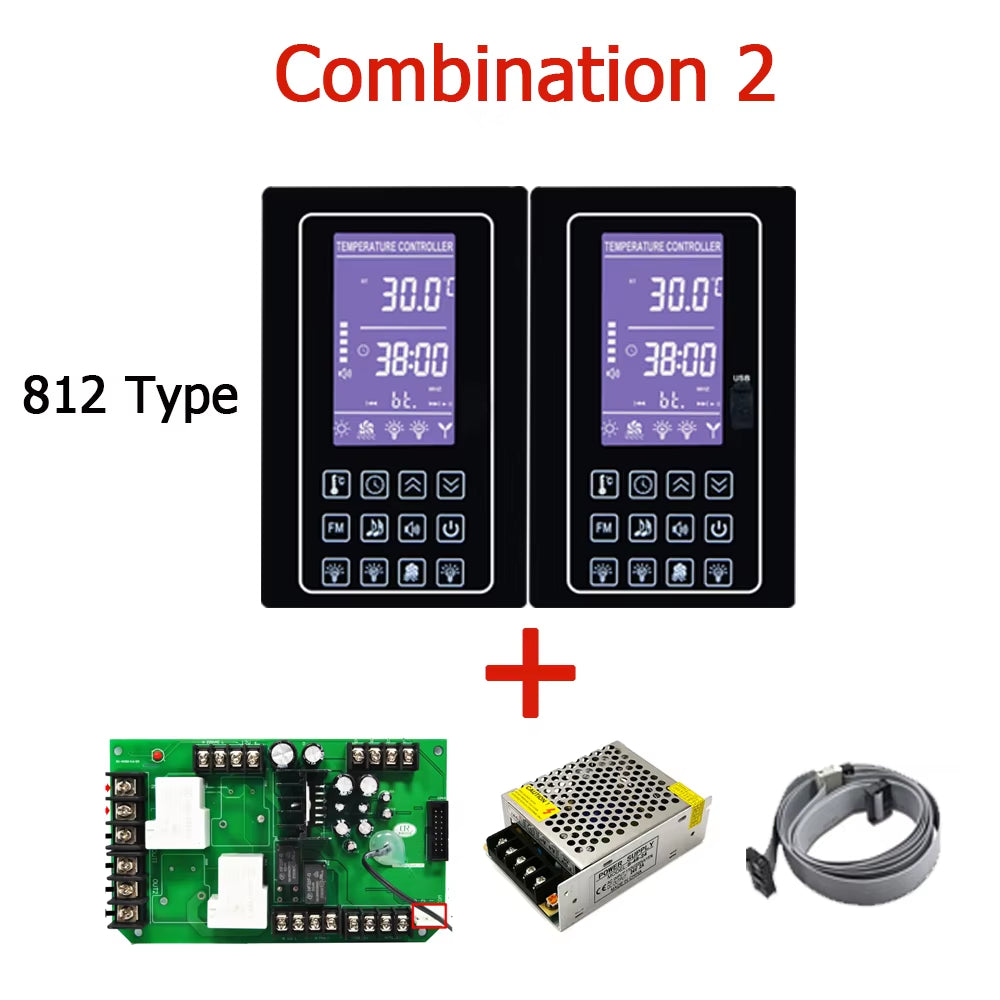

RC812/RC813

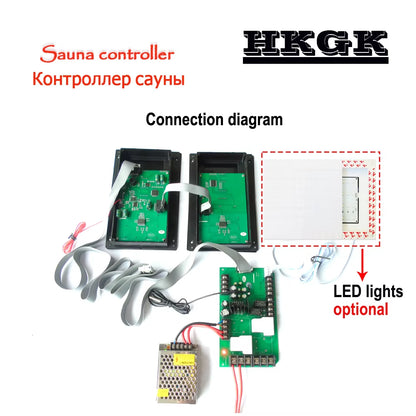

control board and control panel data cable length(Removable).
main control panel and secondary control panel data cable length.
These two cable lengths can be customized. If you need to customize the cable length, please contact us or leave us a message.

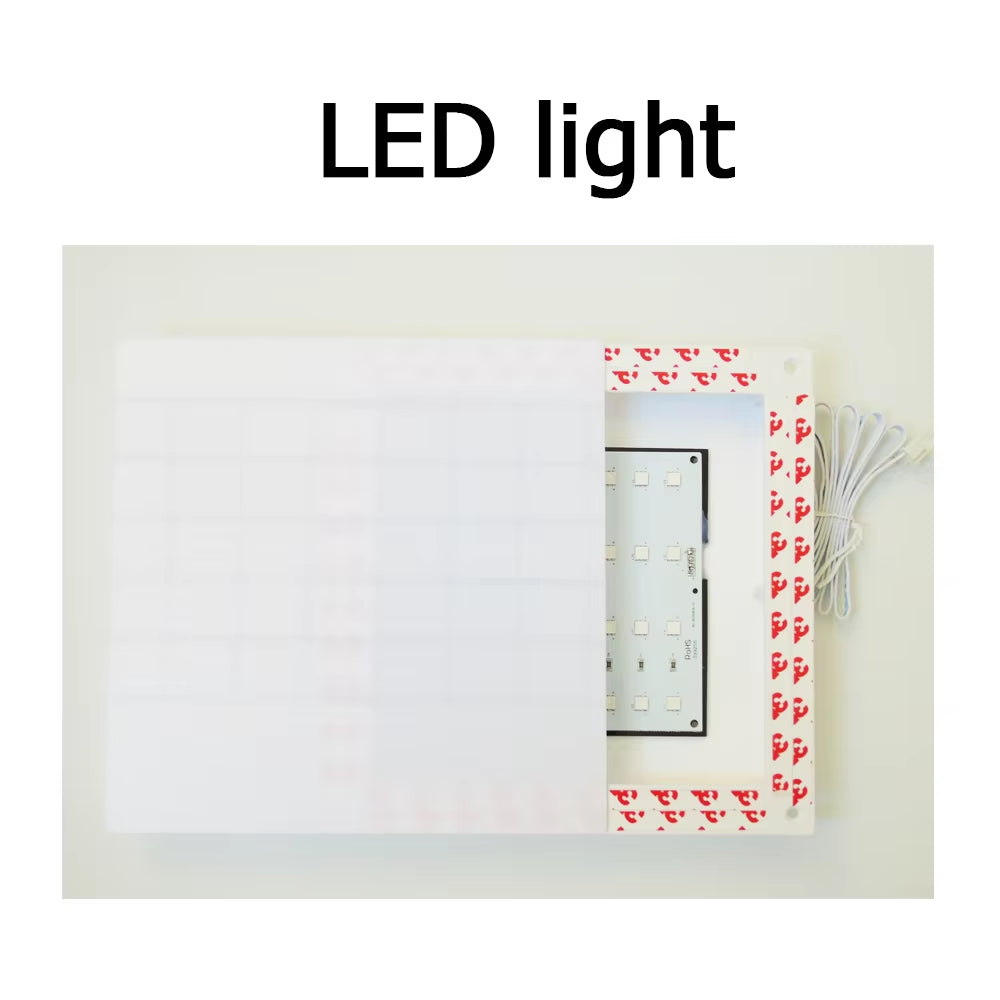

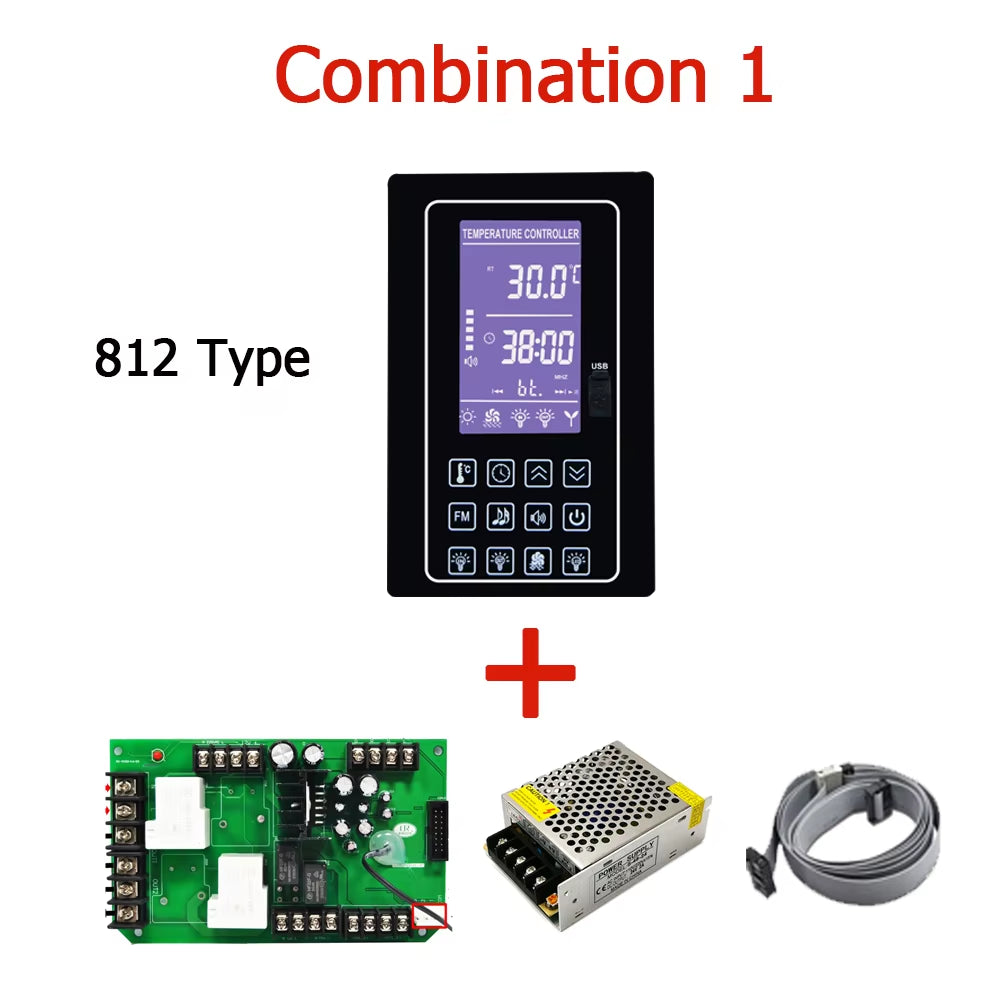

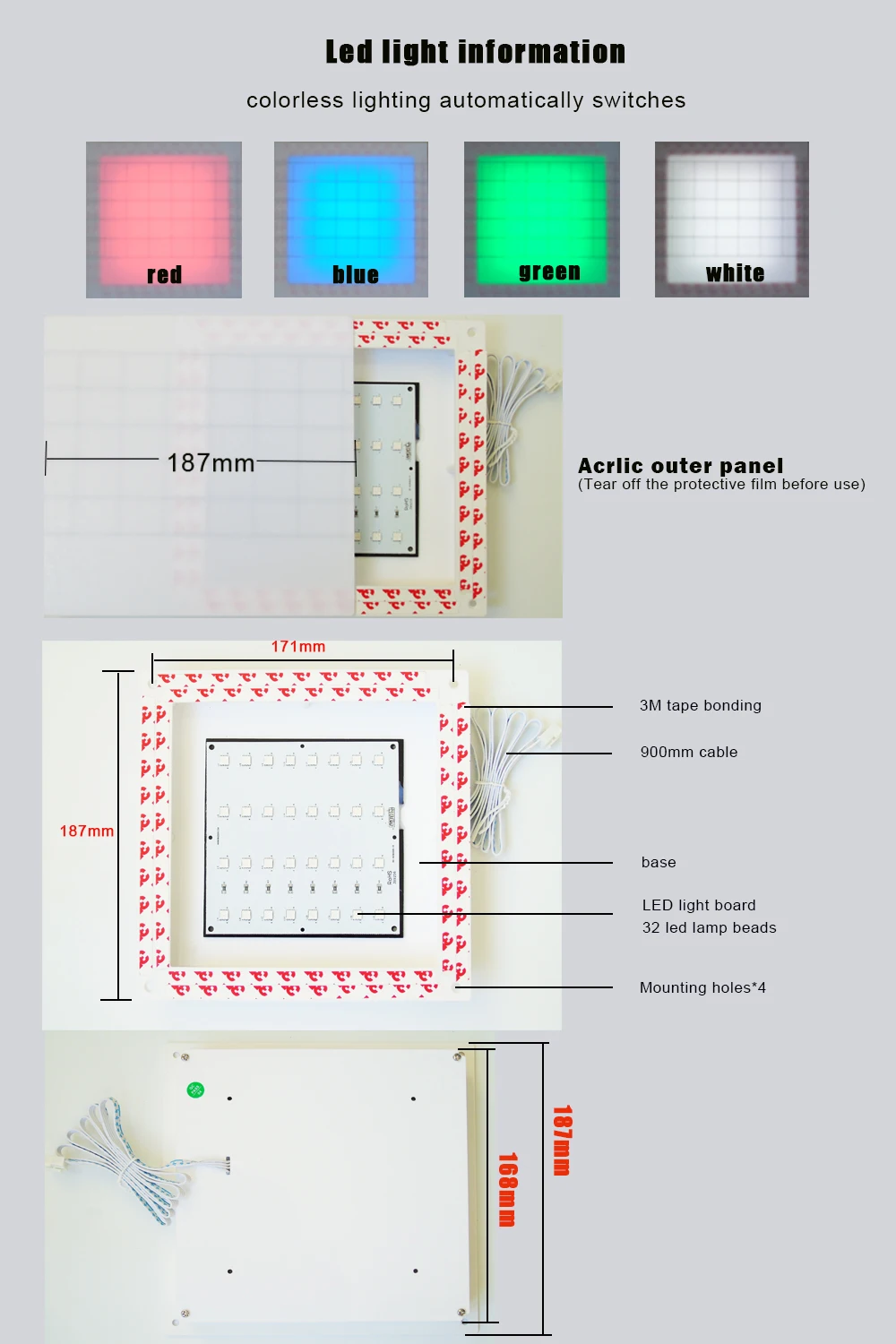

The RC710 / RC812 / RC813 combination does not include an LED light board. If necessary, please purchase separately.

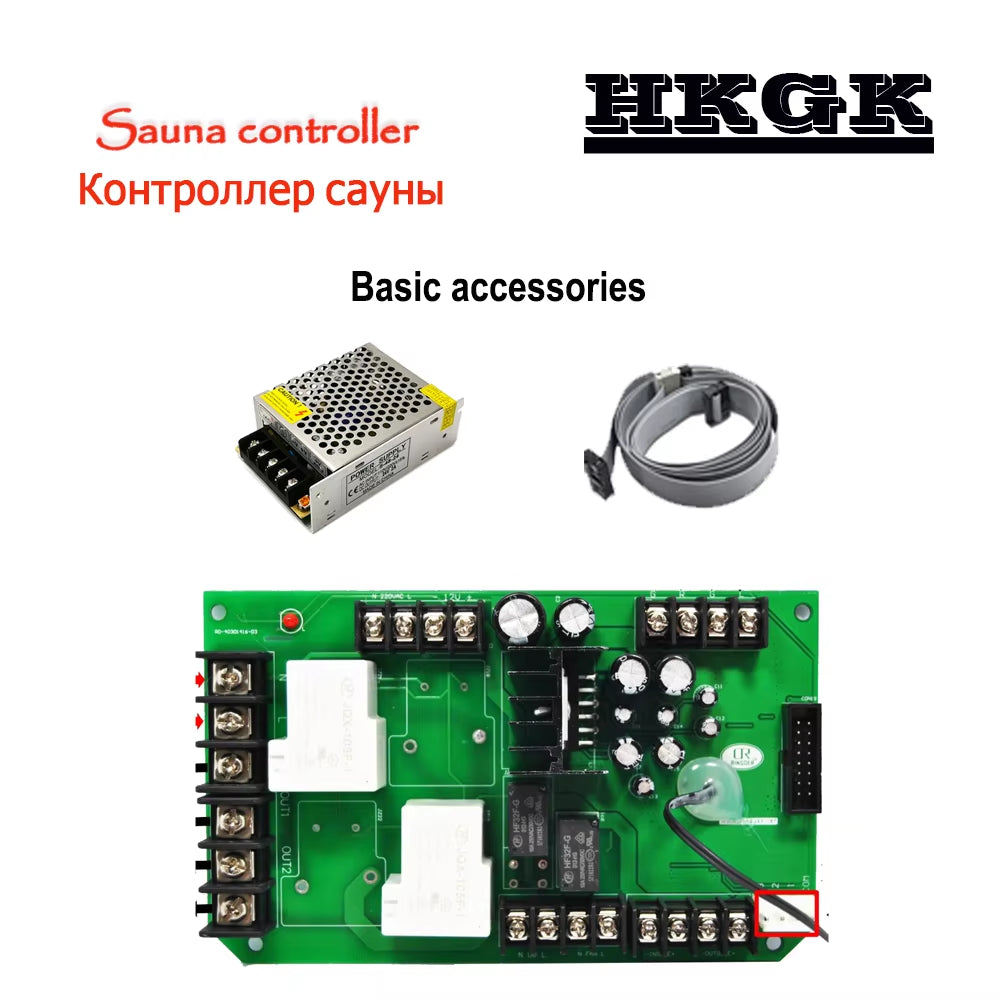

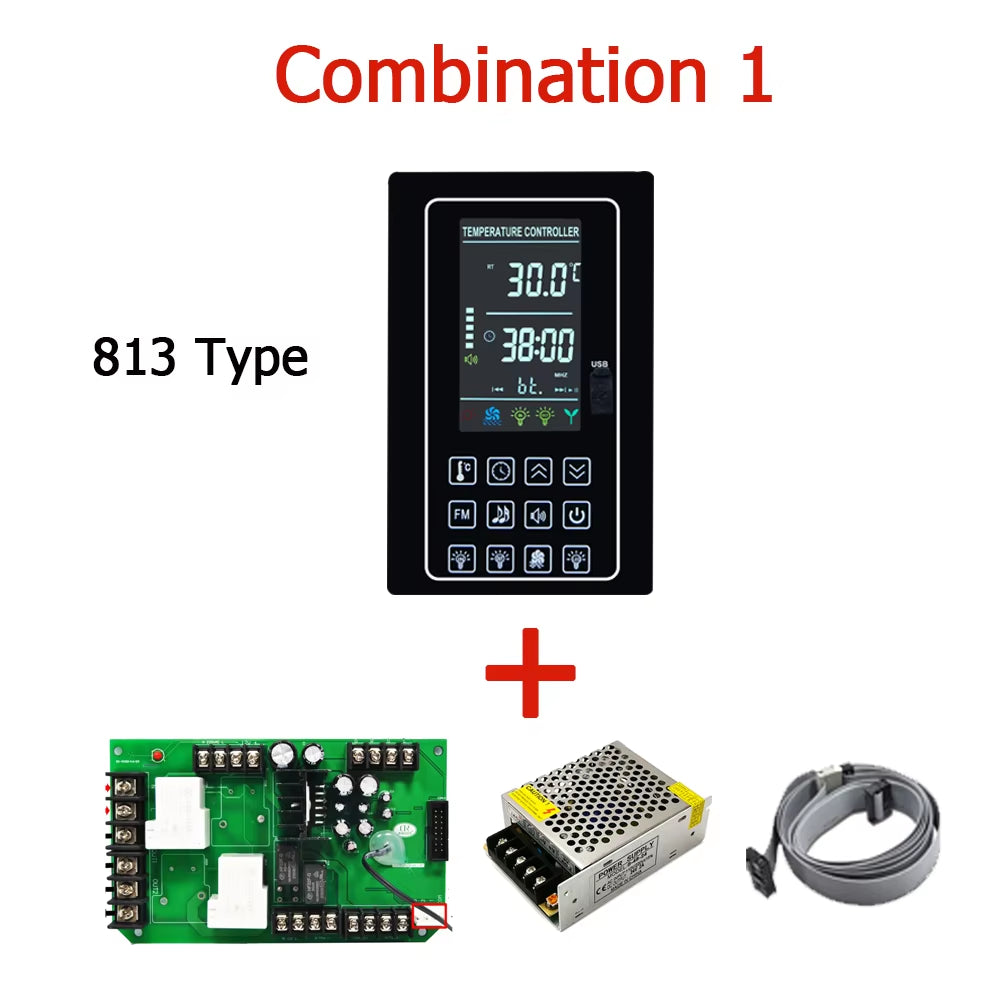

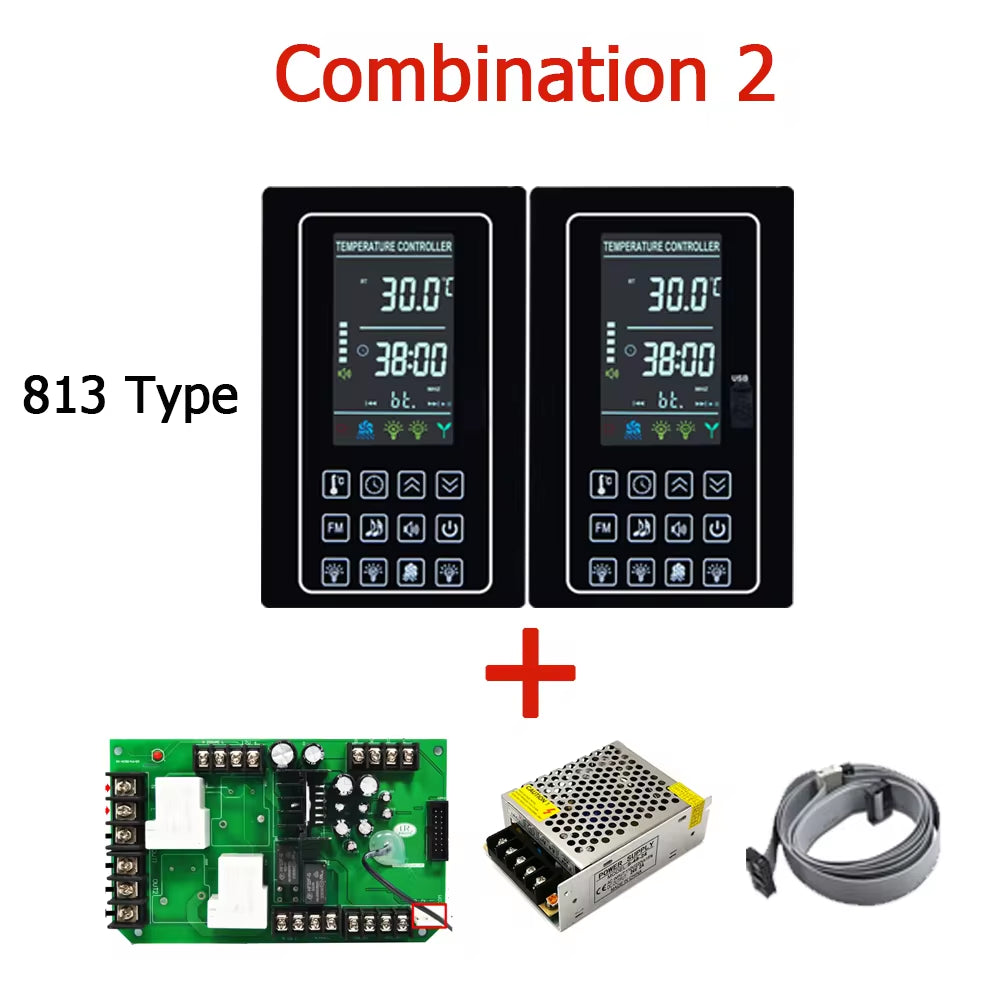

1. Main display unit x 1PCS
2. Deputy display unit x 1pcs(optional)
3. Power Main board (control board) x 1PCS
  1. Cable that connects main board and main display x 1PCS (total 1.4m). RC813 type of connection line will be replaced regularly as needed, and the actual connection line shall prevail.
5. User manual x 1
6. Switching power supply x 1 PCS
